JBT Schröder IMAX 600P/900P – Poultry Injectors

  • Needle manifold
  • Pneumatic retraction for each individual needle, constant adjustable air pressure.
  • Controller/Touch Panel
  • Intuitive operation and ergonomically arranged.
  • Product Feed
  • Two belt options available – standard features FM flat belt with optional CU flighted belt for cut-up operation.
  • Dynamic stripper plate
  • Five positions for maximum flexibility: high setting for whole birds and WOGs; low setting for pieces and parts.
  • Pump unit
  • Variable speed for optimum pressure control. Complete draining at the lowest point.

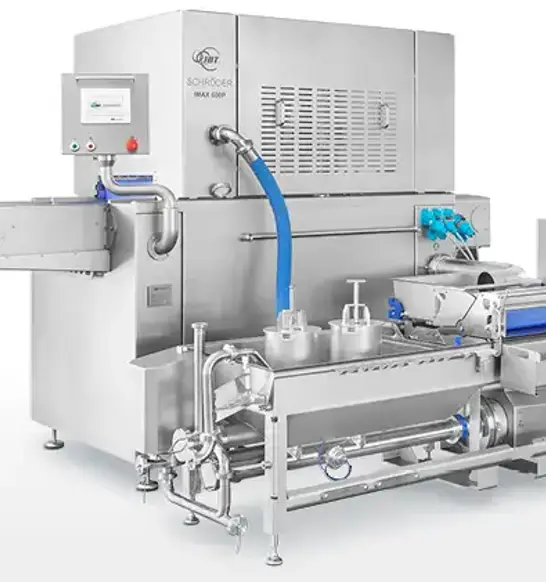

  • Filtration (not illustrated)
  • Four-stage filter eliminates clogged needles and pressure drops, resulting in higher yields and a more consistent product.
  • A higher level of versatility.
  • When we set out to develop the IMAX poultry injector, we looked at chicken marination applications around the world. We combined that information with comprehensive research from leading European Universities specializing in applied fluid technologies. No detail was too small, no potential benefit was overlooked. The result is a highly flexible injector capable of processing a complete range of chicken products – a solution that provides processor’s with the opportunity to easily expand their product line.
  • Greater performance.
  • Every component in the IMAX poultry injector has been optimized for chicken marination. Its dynamic stripper plate features two positions – a high setting for whole birds and WOGs, and a low setting for parts and pieces. The lower area offers four settings each of 13 mm for fine tuning. A new, research-driven manifold design delivers a uniform brine flow to all needles with a consistent needle-tip pressure and injection rate.
  • A superior design for food safety.
  • Like all IMAX injectors, the stainless steel poultry injectors continues to lead the way in food safety. Its external brine path is easily accessible and can be quickly removed for cleaning and inspection to ensure products are not cross-contaminated. The ability to easily remove needles is another important part of food safety. The IMAX poultry injectors have been designed so that all needles can be removed in less than five minutes.
Contact a specialist

Information

The IMAX 600P/900P is the industry’s most advanced injector designed specifically for chicken marination. It is a superior injector, with versatility to match. From bone-in to boneless, from whole birds to parts, the IMAX600P/900P Chicken Injector has every feature you’ll need to process all of your chicken marination applications.

Setting a whole new standard in chicken marination

The IMAX 600P/900P Chicken Injector is designed for all types of chicken marination applications and can handle everything from whole bone-in birds to parts to boneless tenders & nuggets. Like all IMAX injectors, the IMAX 600P offers unparalleled injection distribution, consistency, and reliability. And since the 600P/900P has been optimized for chicken marination, you’ll produce a higher quality product with increased yields and the highest levels of production.

Details

Technical Data IMAX 600P

  • Belt width: 620mm
  • Needles :Single head with 343 needles, 3mm
  • Product Stripper: Five preset positions manually adjustable
  • Product Infeed height adjustment max: 60 – 120mm
  • Product Advance – FM Flat Belt: 45 / 90 / 180
  • Product Advance – CU Flighted Belt: On request
  • Maximum Bone Height – Needle Retraction: 165mm
  • Speed: 15 – 45 strokes/min
  • Brine Tank: FT200

Technical Data IMAX 900P

  • Belt width: 920mm
  • Needles :Single head with 511 needles, 3mm
  • Product Stripper: Five preset positions manually adjustable
  • Product Infeed height adjustment max: 60 – 120mm
  • Product Advance – FM Flat Belt: 45 / 90 / 180
  • Product Advance – CU Flighted Belt: On request
  • Maximum Bone Height – Needle Retraction: 120mm
  • Speed: 14 – 45 strokes/min
  • Brine Tank: FT200

Service

Marel offers a range of service solutions to prevent failures, maximize performance or in case of unexpected breakdowns remote or onsite assistance.

Marel has offices in 30 countries across all regions, and a global network of highly skilled professionals that provide remote as well as onsite service support. We provide quality spare parts and customized service agreements for our customers to ensure optimal performance of Marel equipment.

Gallery

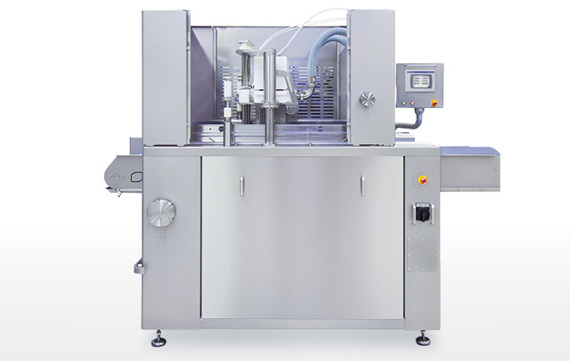

JBT_Schroeder_IMAX_600900P_Poultry_injectors_open
JBT_Schroeder_IMAX_600900P_Poultry_injectors_control

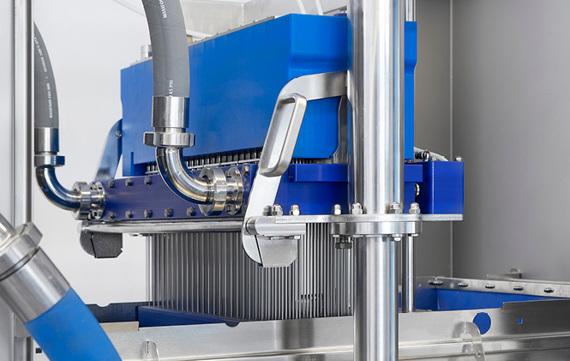

JBT_Schroeder_IMAX_600900P_Poultry_injectors_detail1
JBT_Schroeder_IMAX_600900P_Poultry_injectors_detail2

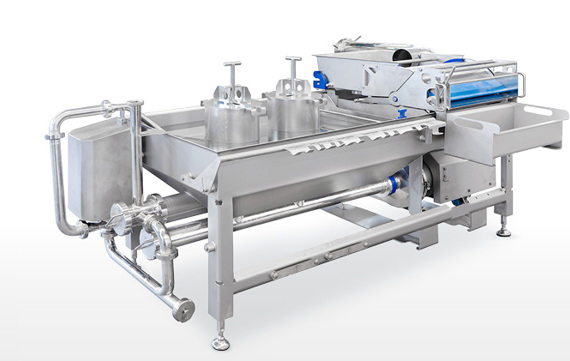

JBT_Schroeder_IMAX_600900P_Poultry_injectors_filter

Downloads

Title Size Document
Title JBT Schröder IMAX 600P/900P – English Size (2.8MB) Document Download
Title JBT Schröder IMAX 600P/900P – German Size (2.8MB) Document Download
Title JBT Schröder IMAX 600P/900P – French Size (2.8MB) Document Download
Title JBT Schröder IMAX 600P/900P – Polish Size (2.8MB) Document Download
Title JBT Schröder IMAX 600P/900P – Romanian Size (2.8MB) Document Download
